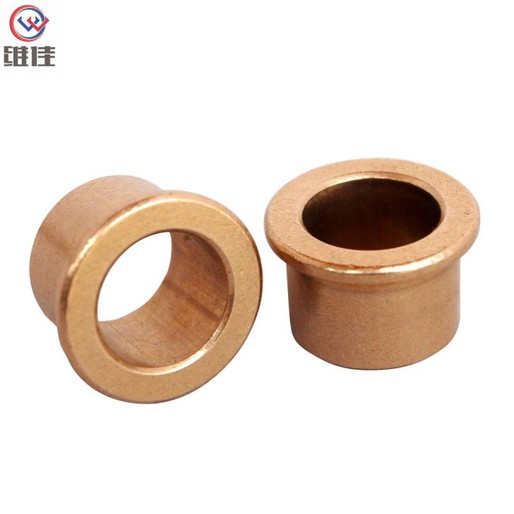

Bronze Bushes Description
Sintered bronze flange bearings and bushings are both self-lubricating sliding bearings made by powder metallurgy. The bushing is mainly cylindrical and is used to bear radial loads and reduce friction, while the flange bearing has a flange edge added to one end of the bushing. It can not only bear radial loads, but also play a role in positioning and bearing certain axial loads. Because its porous structure stores lubricating oil, it can continuously release lubrication during operation and is widely used in motors, automobiles and mechanical equipment.In the field of mechanical transmission and sliding friction, sintered bronze flange bearings and bushings are two widely used basic components. Based on the excellent performance of bronze materials, they are made through powder metallurgy sintering process, and have the characteristics of friction reduction, wear resistance, and self-lubrication. They play a key role in supporting, guiding and reducing friction in various mechanical equipment.
custom bronze bushing function
Custom Size and Structure: We can customize shaft diameters, lengths, and flange configurations to meet your specific requirements.
Lubrication: We offer a variety of oil contents and lubricant types, suitable for high and low temperatures, as well as for specialized environments.
Technical Support: We provide selection recommendations, application guidance, and test data to assist in design optimization.
Surface Treatment and Post-Processing: We offer turning, grinding, and specialized surface treatments to ensure assembly accuracy and longevity.
Flange Bronze Bushing Advantage
Long-lasting Self-Lubrication
The porous structure retains oil, ensuring stable operation even without continuous lubrication, reducing maintenance frequency.
Low Friction and Quiet
The bronze base, combined with its lubricating design, offers a low friction coefficient and significantly lower operating noise than rolling bearings.
Reliable Axial Positioning
The flange structure incorporates a built-in axial stop to prevent movement and simplify assembly and positioning.
Cost-Effectiveness
Mass-produced using a powder metallurgy process, the design is simple and less expensive than rolling bearings.
Adaptable to Complex Operating Conditions
Stable performance under low speeds, reciprocating motion, and impact loads, without the "slippage" issue associated with rolling bearings.
Moderate Temperature and Corrosion Resistance
The bronze material is resistant to atmospheric and freshwater corrosion, with a typical operating temperature range of -40°C to 120°C.
What is Powder Metallurgy ?
Powder metallurgy is an industrial technology that uses metal powder (or a mixture of metal powder and non-metallic powder) as raw material to manufacture metal materials, composite materials and various products through processes such as forming, sintering and subsequent necessary post-processing. It integrates knowledge from multiple disciplines such as materials science, metallurgy and mechanical engineering, and is one of the indispensable key technologies in modern industry.
Powder preparation: Metal powders with specific composition, particle size, and properties are obtained through methods such as mechanical crushing, atomization, or chemical reduction.
Powder mixing/alloying: Different types of powders are uniformly mixed in proportion, and lubricants are added as necessary to ensure compositional consistency.
Forming: The mixed powders are pressed into a green body (a compact) with a specific shape, size, and density using a mold or press.
Sintering: The compact is heated to a temperature below its melting point under a protective atmosphere or vacuum and maintained at this temperature to allow the powder particles to diffuse and bond, forming a dense product.
Powder Metallurgy Advantage
High material utilization
Powder metallurgy products can typically be formed in a single step, reducing the amount of cutting required.
Precise composition control
Powder mixing allows precise adjustment of material composition to create alloys or composite materials with specialized properties.
Uniform and stable performance
Due to the fine and uniform powder particles, the microstructure and properties of the sintered product are relatively uniform and reproducible.
Sintered Bronze Self - Lubricating Flange Bearings and Bushings Specification Table
| Parameter Category | Specific Parameters |
|---|---|
| Standard Models | MPIF: CT - 1000 - K26, SAE841, Sint A50, A51, oil - impregnated |
| Product Types | Sleeve, flange, spherical, miniature, thrust washer, rod |
| Inner Diameter | 3 - 120mm, can also be customized as required |
| Inner Packaging | Plastic bag |
| Outer Packaging | Carton, pallet |
| Static Specific Load Capacity | 10 N/mm² |
| Dynamic Specific Load Capacity | 5 N/mm² |
| Sliding Speed | 6.0 m/s |
| Friction Value | 0.05 to 0.20 [μ] |
| Temperature Range | -40 to +200 [°C] |
| Maximum Pv Value | 1.6 [N/mm²·m/s] |
| Bronze Bushing Hardness | HB 30 - 70 |
| Surface Roughness | 0.8 - 1.6 |
| Yield Strength | 15,000 PSI |
| Elongation | 1% |
| "K" Strength Constant (PSI) | 26,500 |
| Oil Content | 18 - 22% (V) |
| Density | 6.0 - 6.8 g/cm³ |
| Features | Oil - impregnated; Self - lubricating |
Related Products
Brass Bush
Brass bushing is a sleeve-shaped component made of brass material. It is a kind of sliding bearing and is mainly installed between the shaft and seat of mechanical equipment to support and guide the rotating or reciprocating shaft.
Fan Bushing
The fan bushing is a sleeve-shaped part installed between the fan shaft and the casing. It belongs to the sliding bearing structure and is used to support and guide the rotational motion of the shaft.
Phosphor Bronze Bushes
Phosphor bronze bushing is a sleeve-shaped component made of phosphor bronze material. It is a type of sliding bearing and is mainly used for support and guidance between the shaft and the seat.
Bronze Sleeve Bearings
Bronze sleeve bushing is a cylindrical part made of bronze material, belonging to the category of sliding bearings, mainly installed between the shaft and seat of mechanical equipment.
Oil Impregnated Brass Bushings
Oil-impregnated brass bushings are brass bushings manufactured using powder metallurgy technology. Lubricating oil is pre-impregnated into the porous structure after molding, giving it self-lubricating properties.
Graphite Bronze Bushing
Graphite bronze bushing is a sleeve-type sliding bearing with bronze as the base and graphite solid lubricant inlaid or filled on its friction surface.
Process Of Bronze Bushing
Powder laying: Firstly, decontaminate and deoxidize the steel plate surface, and then prepare the required copper powder;
Sintering: The copper powder material can be transformed into dense body in the sintering process. After the powder is formed, the dense body obtained by sintering is a polycrystalline material, which affects the performance of the material. According to different technical requirements and steel plate thickness, alloy copper powder with a certain thickness is evenly paved on the surface of the steel plate, then heated with high temperature oxygen isolation, and sintered at 700-900 ℃ for 30-90 minutes. The metal other than copper is partially melted, and the alloy powder becomes paste. After cooling, it is firmly sintered on the steel plate;
Blanking: Cut the steel plate and copper plate into the specified length and width according to the product requirements;
Oil pressure groove: Punch out the oil groove with designed size on the bimetallic plate;
Punching buckle: Set punching buckle at the edge;
Pre bending: Place the alloy plate on the pre bending die for pre bending;
Bending: Combine the two ends of the alloy parts bent at both ends with the bending die;
Rounding: Shape the alloy parts with guide posts;
Extrusion: While shaping, the side matching the shape radius of the alloy part and the pressing die are used for final shaping;
Integration: Level the two end faces of the alloy parts on the grinder, chamfer the mouth at both ends, and finally finish grinding the outside of the alloy parts.
Application of bronze bushings in machinery
Automotive Industry: Seat adjustment mechanisms, wiper motors, window regulators.
Home Appliance Industry: Washing machine drum shafts, air conditioner fan bearings.
Mechanical Transmission: Small gearboxes, conveyor belt tensioners.
Textile Machinery: Spinning machine roller shafts, loom swing arms.
Construction Machinery: Excavator pin bushings, hydraulic cylinder guide sleeves.
Office Equipment: Printer rollers, copier transmission mechanisms.
wholesale Custom Bronze Bearing And Bushing Product Manufacturer
Choosing us as your bronze bushing manufacturer partner will provide you with the combined advantages of professional manufacturing capabilities, strict quality control, and flexible customization.
We have our own powder metallurgy facility with over 21 years of industry experience. Our 14,000-square-meter bronze bushing facility is equipped with advanced presses, high-temperature sintering furnaces, precision molding machines, and thousands of high-quality molds, enabling the consistent production of high-precision parts.
We are ISO9001:2015 and IATF16949:2016 certified, and our independent laboratory rigorously tests every batch of products to ensure reliable quality.
We offer OEM/ODM bushing customization services, including laser printing of logos and customized packaging. We also support wholesale and factory direct sales.
With a global partner network, competitive pricing, a one-year warranty, and long-term after-sales service, we are able to provide B2B customers with high-quality, reliable, and flexible product solutions, empowering your business to grow efficiently.
Our Certificate
FAQ
Q: What is the load capacity of your flanged bronze bushings?
A:Bronze flange bushings are widely used in pumps, valves, reducers, and other machinery. As a manufacturer, we offer wholesale flange bushings in various sizes to meet custom requirements from end-users.
Q: What self-lubricating features do graphite bronze bushings provide?
A: Graphite bronze bushings offer excellent wear resistance and high-temperature self-lubricating properties, making them ideal for use in high-temperature equipment. Our bushing factory offers both bulk supply and custom processing.
Q: In which applications can self-lubricating bronze bushings be used?
A: Self-lubricating bronze bushings are commonly used in hydraulic equipment, heavy-duty machinery, and industrial bearings. They are perfect for B2B customers who require low-maintenance and cost-effective solutions.
Q: How resistant to corrosion are phosphor bronze bushings?
A: Made from high-quality phosphor bronze, our bushings provide excellent corrosion and wear resistance, making them a reliable choice for mechanical part manufacturers and wholesale suppliers.
Q: Are oil-free bronze bushings suitable for high-temperature environments?
A: Yes, our oil-free bronze bushings are designed for high-temperature and maintenance-free applications. They are widely used by industrial equipment factories and B2B buyers in bulk.
Q: What are the advantages of sintered bronze bushings?
A: Our sintered bronze bushings are manufactured using advanced powder metallurgy, ensuring uniform porosity and excellent oil-retention capacity. They are a cost-effective solution for large-scale procurement.
Q: Can brass bushings be customized in different dimensions?
A: Yes, as a professional manufacturer, we can produce both standard and non-standard brass bushings to meet different shaft sizes and lengths. We also support wholesale and OEM orders.
Q: How durable are your bearing bushings under heavy load?
A: Our bearing bushings are strictly tested for high wear resistance and long service life. They are trusted by machinery factories, suppliers, and international distributors.
Q: What special environments are aluminum bronze bushings suitable for?
A: Aluminum bronze bushings feature high strength and excellent anti-corrosion performance, making them ideal for marine equipment, mining machinery, and chemical industry applications. Bulk supply is available for global buyers.
Q: Do you offer customized bronze bushing solutions?
A: Yes, as a professional bronze bushing manufacturer and supplier, we provide customized solutions for flanged, graphite, self-lubricating, phosphor bronze, and other types. OEM/ODM services and wholesale support are available for B2B clients.
