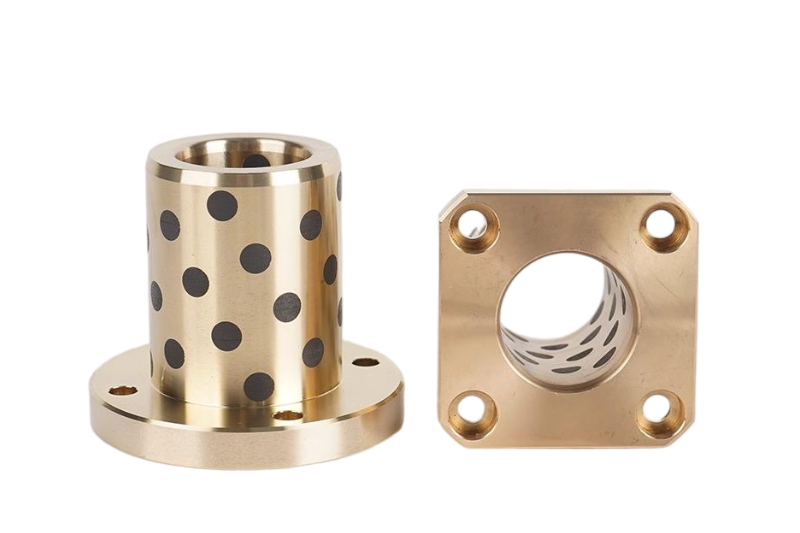

Flanged bronze-graphite bushings are self-lubricating plain bearings with a high-strength tin bronze or aluminum bronze base, solid lubricant particles (such as graphite or molybdenum disulfide) uniformly embedded in the friction surface, and a flange mounted on the outer ring. They combine the high load-bearing capacity of the metal base with the low friction characteristics of the solid lubricant, ensuring long-term stable operation without the need for additional lubrication. The flange design provides both position limiting and support during installation, preventing axial displacement and making them suitable for use in high-load, low-speed reciprocating or oscillating motion conditions.
Product Core selling points
● Reduce maintenance costs - Self-lubricating design minimizes upkeep expenses.
● Extend replacement intervals - High wear resistance lowers spare part procurement frequency.
● Shorten installation time - Flanged structure simplifies assembly.
● Minimize downtime losses - Ensures more stable and reliable equipment operation.
● Optimize inventory management - Standardized and customizable options reduce inventory pressure.
● Enhance market competitiveness - Longer-lasting and higher-performing end products.
quality control
●Quality Standards: ISO9001
●Quick Delivery: 15 Days
●Payment Terms: T/T, L/C, Paypal
●Shipment: By Sea / Air
●Delivery Terms: FOB, CFR, DDU
●Custom Registration No.: 3301965G49
●Sliding Bearing HS-Code: 8483300090
Custom Flanged Bronze Bushing Parameter Table: Non-standard Customization Available
Welfine's bronze bushings are custom-designed to the highest level of precision to ensure they meet stringent tolerances and specifications. Our goal is to achieve the lowest possible coefficient of friction based on operating conditions (e.g., load, speed, motion type, environment, temperature, etc.).
Our custom bushings offer a long service life under the following conditions
| Parameter | Typical Range / Options | Notes |
|---|---|---|
| Dimensions | Inner diameter: 10–200 mm Outer diameter: 20–250 mm Length: 10–100 mm Tolerance: ±0.01–0.05 mm |
Custom sizes available upon request |
| Material Composition | Tin bronze (CuSn8–12) Aluminum bronze (CuAl10–10) Graphite-embedded variants |
Uniformly embedded graphite provides self-lubrication |
| Load Capacity | Static: 100–500 MPa Dynamic: 30–150 MPa |
Depends on size and material |
| Hardness | Brinell: 80–200 HB | High hardness ensures wear resistance |
| Friction Coefficient | 0.05–0.15 (dry) | Graphite lubrication significantly reduces friction |
| Operating Conditions | Temperature: -50°C to +250°C Speed: ≤2 m/s Pressure: ≤15 MPa |
Can be customized for special working conditions |
wholesale bronze bushings Manufacturer
Jiande Welfine Technology Co., Ltd. is a light-duty bronze bushing manufacturer ,we have been deeply engaged in the powder metallurgy field for 21 years, advanced production equipment, and ISO/IATF certifications, we provide high-quality bronze, iron, and stainless steel bushings to global customers. Our strength lies in customization, stable quality, and reliable service, making us a trusted partner in automotive, industrial, and machinery sectors.
FAQ
Q: Can I get custom sizes?
A: Yes, inner diameter, outer diameter, length, and tolerances can be customized to fit your specific equipment, reducing retrofit costs.
Q: What is the typical load capacity?
A: Static load ranges from 100–500 MPa and dynamic load from 30–150 MPa, supporting heavy-duty industrial applications.
Q: What is the operating temperature range?
A: From -50°C to +250°C, suitable for harsh working environments and high-temperature machinery.
Q: Do these bushings require lubrication?
A: No, the embedded graphite provides self-lubrication, reducing maintenance costs and downtime.
