Our powder metallurgy process begins with the careful selection of high-quality bronze powders, meticulously blended to achieve precise material properties. Through controlled compaction and sintering processes, these powders are transformed into durable and resilient bearing components. This manufacturing method ensures uniform density and optimal material integrity, resulting in bearings with consistent mechanical properties and superior performance characteristics.One of the key advantages of bronze bearings lies in their self-lubricating properties. Impregnated with lubricating oil during the manufacturing process, these bearings provide continuous lubrication to reduce friction and wear, ensuring smooth and efficient operation over extended periods. This self-lubricating feature eliminates the need for external lubrication systems, simplifying maintenance and reducing operating costs.The Oilite bronze bearings offer exceptional load-bearing capacity and resistance to wear, making them ideal for applications subjected to heavy loads and high speeds. Their robust construction and inherent strength enable them to withstand the rigors of demanding industrial environments, ensuring reliable performance in a wide range of operating conditions.
Customization is another hallmark of Oilite bronze bearings, allowing us to tailor products to meet the specific requirements of our customers. Whether it's variations in size, shape, or material composition, our flexible manufacturing capabilities enable us to deliver bespoke solutions that optimize performance and efficiency for each unique application.

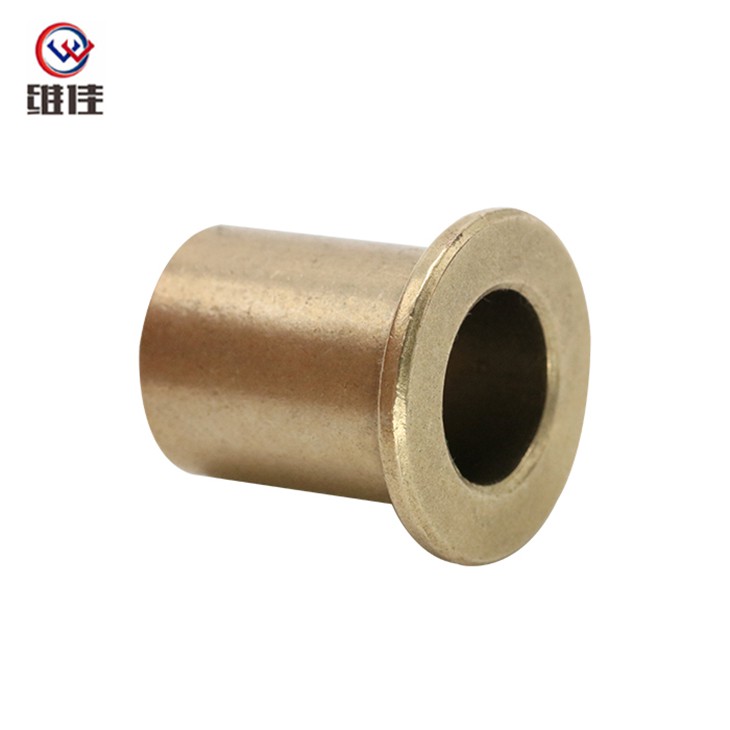

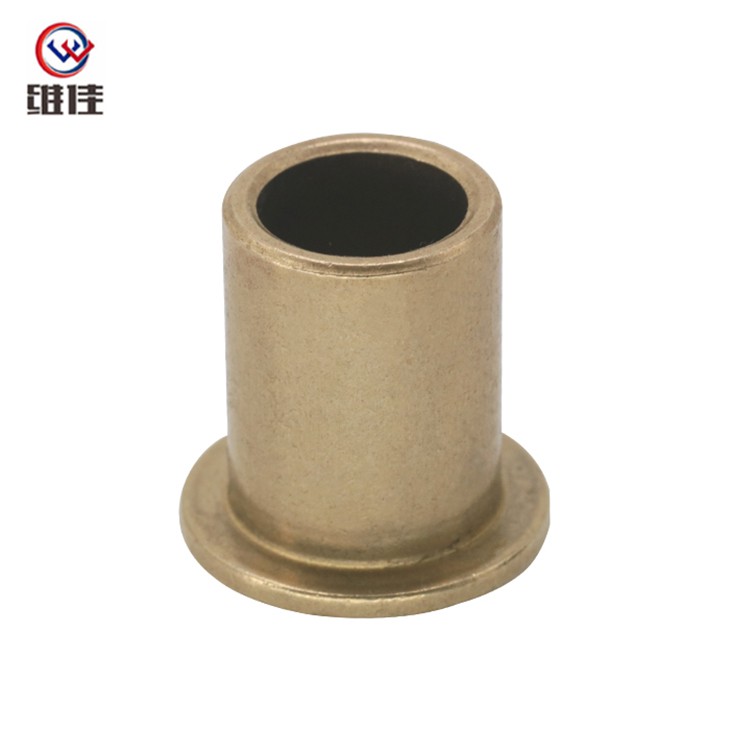

Sintered Bronze Bushings Advantages
Bronze Bushings Ingredient List
| CHEMICAL COMPOSITION | ||||||
| Chemical Composition Limits (%) | ||||||
| ALLOY | COPPER | ZINC | LEAD | IRON | TIN | SILICON |
| C93200 | 81-85 | 1-4 | 6-8 | 0.2 | 6.3-7.5 | 0.005-0.08 |
| C95400 | 83 (minimum) | None | None | 3-5 | None | None |
| SAE 841 | 87.5-90.5 | None | None | 1 | 9.5-10.5 | None |
| ALUMINUM | PHOSPHORUS | MANGANESE | NICKEL (INCL.COBALT) | ANTIMONY | OTHER ELEMENTS |
|
| 0.005 | 0.15 | None | 1 | 0-0.35 | 0-0.08 Sulfur | |
| 10-11.5 | None | 0-0.5 | 0-1.5 | None | None | |
| None | None | None | None | None | 0.3 Carbon | |
| PHYSICAL & MECHANICAL PROPERTIES | |||||
| ALLOY | NOMINAL DENSITY | MODULUS OF ELASTICITY |
MELTING POINT OR RANGE |
THERMAL CONDUCTIVITY |
|
| lbs. /cu.in | ksi | degrees F | BTU/sq.ft./ft./hr./degrees F @ 68 degrees F |
||
| C93200 | 0.322 | 14,500 | 1570-1790 | 33.6 | |
| C95400 | 0.269 | 15,500 | 1880-1900 | 33.9 | |
| SAE 841 | 0.231-0.246 | Not Rated | 1800-2000 | Not Rated | |
| ELECTRICAL RESISTIVITY |
TEMPER | HARDNESS | ULTIMATE TENSILE | YIELD STRENGTH |
ELONGATION |
| ohms @ 68 degrees F |
Rockwell (unless noted) |
ksi | ksi | % | |
| Not Rated | As Cast | 65 Brinell | 35 | 20 | 10 |
| 80.2 | As Cast | 150-170 Brinell | 85 | 32-35 | 12-18 |
| Not Rated | As Pressed | H50 | 14 | 9 | 1 |
Bronze Bushings Applications
As a manufacturer of Oilite bronze bearings, we possess several distinct advantages that set us apart in the industry. Firstly, our commitment to quality is unwavering, with stringent quality control measures in place to ensure that every bearing meets or exceeds industry standards. From raw material procurement to final inspection, we adhere to strict quality protocols to deliver products of the highest caliber.Our extensive experience and technical expertise enable us to provide comprehensive support and guidance to our customers throughout the product lifecycle. Whether it's assistance with product selection, design optimization, or troubleshooting, our knowledgeable team is dedicated to ensuring customer satisfaction and success.Our streamlined production processes and efficient supply chain management enable us to offer competitive pricing without compromising on quality. We understand the importance of cost-effectiveness in today's competitive market, and we strive to deliver value to our customers through reliable products and exceptional service.

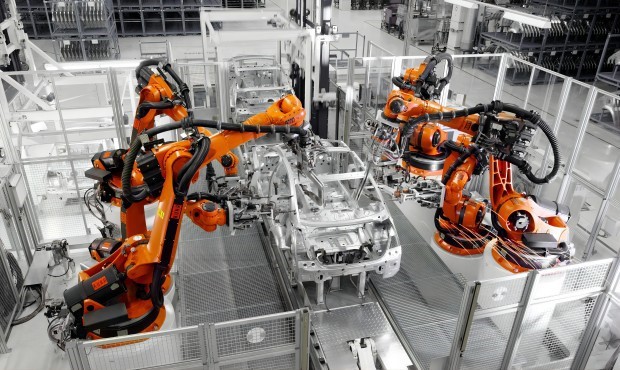

Automotive Industry:
In the automotive industry, Sintered Bronze Bushings are widely used in engines, transmission systems and suspension systems. They reduce friction, reduce vibration, and increase part life. Whether used in transmission bearings or steering systems, these copper alloy bushings provide reliable performance.
Home appliances:
In the field of home appliances, Sintered Bronze Bushings are used as key components in various home appliances. From washing machines to air conditioning units, these bushings play an important role in motors and compressors, ensuring their stable operation and long-term durability.
FAQ
What are the key advantages of using bronze Oilite bushings in industrial applications?
Bronze Oilite bushings offer several advantages, including self-lubrication, corrosion resistance, and high load-bearing capacity. The self-lubricating properties of Oilite bushings eliminate the need for additional lubrication systems, reducing maintenance requirements and minimizing downtime. Additionally, their corrosion resistance ensures long-term durability, making them suitable for use in harsh environments. Moreover, Oilite bushings can withstand heavy loads and high speeds, providing reliable performance in a wide range of industrial applications.
How do bronze Oilite bushings contribute to improved equipment performance and longevity?
Bronze Oilite bushings play a crucial role in enhancing equipment performance and longevity by providing smooth and reliable operation while minimizing wear and tear on moving parts. The self-lubricating properties of Oilite bushings reduce friction and heat generation, preventing premature wear and extending the lifespan of equipment components. Furthermore, their ability to withstand heavy loads and resist corrosion ensures consistent performance even in demanding operating conditions, contributing to the overall reliability and efficiency of industrial machinery.
In what industries or applications are bronze Oilite bushings commonly used?
Bronze Oilite bushings find widespread use in various industries and applications, including automotive, aerospace, manufacturing, and marine. They are commonly employed in machinery and equipment such as pumps, motors, conveyors, and agricultural machinery, where smooth and reliable operation is essential. Additionally, Oilite bushings are used in suspension systems, steering mechanisms, and hydraulic cylinders in automotive and aerospace applications, where they provide reliable performance under high loads and extreme conditions.
