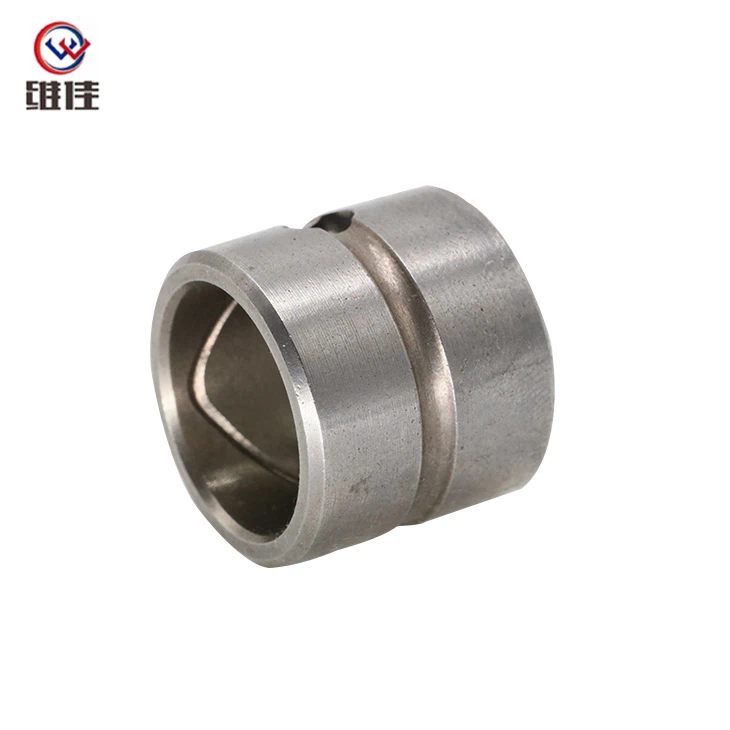

Introducing our 1 id flange bushing, a premium product engineered to deliver exceptional performance, durability, and versatility in various industrial applications. Crafted with precision and expertise, our flange bushings are designed to meet the highest standards of quality and reliability.Our 1" ID Flange Bushing is a cylindrical component with a flanged outer edge and a 1-inch inner diameter. Made from high-grade materials such as bronze, brass, or steel, the bushing is meticulously crafted to ensure precise dimensions, smooth surfaces, and optimal functionality. The 1 id flange bushing design provides added stability and support, making it suitable for use in applications where axial or radial loads are present.We understand that every application has unique requirements, which is why we offer customizable options for our flange bushings. From material selection and dimensions to surface finishes and lubrication preferences, we work closely with our customers to tailor the bushings to their specific needs. Whether it's a special size, tolerance, or material composition, our team of experts is dedicated to providing customized solutions that meet the exact specifications of each application.
Flange Bushing Advantages
Enhanced Stability:
The flanged design provides increased stability and resistance to axial and radial forces, ensuring reliable performance in high-load applications.
Reduced Friction:
The smooth, precision-machined surfaces of our bushings minimize friction and wear, resulting in extended service life and reduced maintenance requirements.
Corrosion Resistance:
Made from corrosion-resistant materials, our flange bushings are suitable for use in harsh environments and outdoor applications, where exposure to moisture, chemicals, or extreme temperatures may occur.
Flanged Bushing Ingredient List
| PHYSICAL & MECHANICAL PROPERTIES | ||||
| ALLOY | NOMINAL DENSITY |
MODULUS OF ELASTICITY |
MELTING POINT OR RANGE |
THERMAL CONDUCTIVITY |
| lbs. /cu.in | ksi | degrees F | BTU/sq.ft./ft./hr./degrees F @ 68 degrees F |
|
| C93200 | 0.322 | 14,500 | 1570-1790 | 33.6 |
| C95400 | 0.269 | 15,500 | 1880-1900 | 33.9 |
| SAE 841 | 0.231-0.246 | Not Rated | 1800-2000 | Not Rated |
| ELECTRICAL RESISTIVITY |
TEMPER | HARDNESS | ULTIMATE TENSILE STRENGTH |
YIELD STRENGTH |
| ohms @ 68 degrees F |
Rockwell (unless noted) |
ksi | ksi | |
| Not Rated | As Cast | 65 Brinell | 35 | 20 |
| 80.2 | As Cast | 150-170 Brinell | 85 | 32-35 |
| Not Rated | As Pressed | H50 | 14 | 9 |
Flanged Bushing Applications
Automotive Applications:
Flange bushings are essential components in automotive systems, where they are used in suspension systems, steering linkages, and drivetrain components. They help to absorb shocks and vibrations, maintain alignment, and enhance overall vehicle performance and handling
Aerospace and Aviation:
In the aerospace and aviation industries, flange bushings are utilized in aircraft landing gear, control surfaces, and engine components. Their high-strength construction and ability to withstand extreme conditions make them ideal for critical aerospace applications.
FAQ
Question 1: What are flanged sleeve bushings, and how do they differ from standard sleeve bushings?
Answer: Flanged sleeve bushings are cylindrical bearings with a flange or collar at one end. This flange serves as a built-in washer or spacer, providing additional support and stability when installed. In contrast, standard sleeve bushings do not have a flange and are typically used in applications where axial movement is not a concern. Flanged sleeve bushings offer enhanced retention capabilities and are commonly used in situations where axial movement needs to be limited or controlled.
Question 2: What are the primary applications of flanged sleeve bushings?
Answer: Flanged sleeve bushings find applications in a wide range of industries and scenarios. They are commonly used in machinery and equipment to support rotating shafts, axles, and other components. Additionally, they are utilized in automotive systems, such as suspension linkages and steering mechanisms, where they help to reduce friction and ensure smooth operation. Flanged sleeve bushings also see use in aerospace, marine, construction, and renewable energy applications, where their stability and durability are highly valued.
